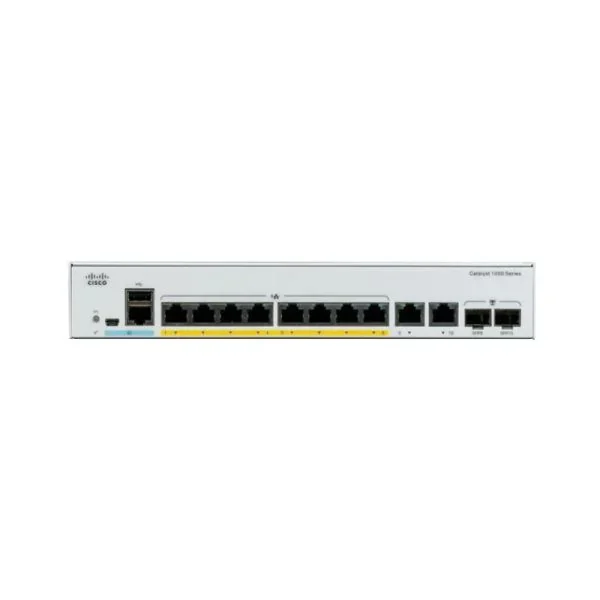

C1000-8P-2G-L – Cisco Catalyst 1000 Series Switches

CISCO

Catalyst 1000 8port GE, POE, 2x1G SFP



WhatsApp Contact on WhatsApp

The Cisco C1000-8P-2G-L is a reliable and compact switch that provides efficient network connectivity for small to medium-sized businesses. Designed to deliver high-performance, the switch comes equipped with 8 Gigabit Ethernet ports and 2 SFP/RJ-45 combo uplink interfaces, offering flexibility for both copper and fiber network connections. Its fanless design ensures quiet operation, making it ideal for office environments or areas where noise reduction is important.

Supporting PoE+ (Power over Ethernet Plus) with a total power budget of 67W, the C1000-8P-2G-L can efficiently power devices like IP phones, security cameras, and wireless access points, while also delivering reliable network connectivity. This makes it a perfect choice for organizations looking to simplify their network infrastructure without the need for additional power sources for their devices.

The switch supports Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and Quality of Service (QoS), allowing businesses to prioritize traffic and improve network performance. It also offers advanced network security with features like port security and MACsec encryption, ensuring that your sensitive data remains protected from unauthorized access.

With Cisco IOS XE software, the Cisco C1000-8P-2G-L provides powerful network management capabilities, allowing IT administrators to monitor, configure, and troubleshoot the network with ease. It also supports Flexible NetFlow for detailed traffic monitoring and analysis, helping organizations maintain optimal network performance.

The Cisco C1000-8P-2G-L is not only energy-efficient but also designed to minimize environmental impact, featuring low power consumption and compliance with energy-efficient standards. With a mean time between failures (MTBF) of over 2 million hours, it provides reliable and long-lasting service.

For more details on the Cisco C1000 series, visit Cisco’s official product page or check out the Cisco C1000-8P-2G-L datasheet.

Specification C1000-8P-2G-L
Gigabit Ethernet Ports 8
Uplink Interfaces 2 SFP/RJ-45 combo
PoE+ Power Budget 67W
Fanless Yes
Dimensions (WxDxH in inches) 10.56 x 12.73 x 1.73
Console Ports RJ-45 Ethernet (1), USB mini-B (1), USB-A for storage and Bluetooth console (1)
Memory and Processor CPU: ARM v7 800 MHz, DRAM: 512 MB, Flash Memory: 256 MB
Performance Forwarding Bandwidth: 10 Gbps, Switching Bandwidth: 20 Gbps, Forwarding Rate (64-byte L3 packets): 14.88 Mpps
Unicast MAC Addresses 16,000
IPv4 Unicast Direct Routes 542
IPv4 Unicast Indirect Routes 256
IPv6 Unicast Direct Routes 414
IPv6 Unicast Indirect Routes 128
IPv4 Static Routes 16
IPv6 Static Routes 16
IPv4 Multicast Routes and IGMP Groups 1,024
IPv6 Multicast Groups 1,024
IPv4/MAC Security ACEs 600
IPv6 Security ACEs 600
Maximum Active VLANs 256
VLAN IDs Available 4,094
Maximum STP Instances 64
Maximum SPAN Sessions 4
MTU-L3 Packet 9,198 bytes
Jumbo Ethernet Frame 10,240 bytes
Dying Gasp Yes
MTBF (data) 2,171,669 hours
MTBF (PoE) 1,786,412 hours (External PS), 1,706,649 hours (Full PoE)
Environmental Operating Temperature: -5 to 50°C (up to 5,000 ft), -5 to 45°C (up to 10,000 ft), -5 to 40°C (up to 10,000 ft); Operating Altitude: 10,000 ft (3,000 m); Storage Temperature: -13 to 158°F (-25 to 70°C); Storage Altitude: 15,000 ft (4,500 m)
Operating Relative Humidity 5% to 90% at 40°C
Storage Relative Humidity 5% to 95% at 65°C
Safety and Compliance UL 60950-1, EN 60950-1, IEC 60950-1, RoHS, EMC Emissions and Immunity
Ethernet Interfaces 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-T SFP-based ports
Indicator LEDs Per-port status: link integrity, disabled, activity; System status: system
Console Cables CAB-CONSOLE-RJ45 (6 ft. with RJ-45), CAB-CONSOLE-USB (6 ft. with USB Type A and mini-B connectors)
Power Use supplied AC power cord to connect to an AC outlet; Models have external power supply
