Hybrid USB-C
, , ,

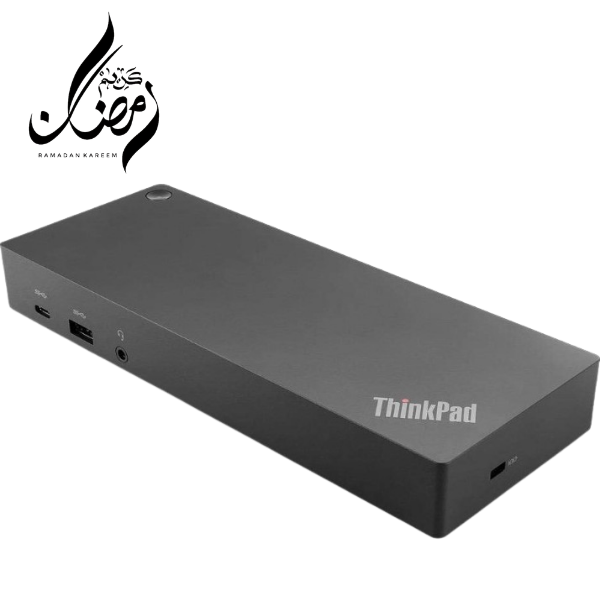

ThinkPad Hybrid USB-C with USB-A Dock

Lenovo
Compare
  • Product Type: Docking Station
  • Power Provided: 135 Watt
  • Interfaces: USB 3.1 Gen 2, USB 2.0, USB-C, DisplayPort, HDMI, LAN

د.ك58.000

Add to quote
Compare

One Dock, Endless Possibilities

Maximize your productivity with the Lenovo ThinkPad Hybrid USB-C with USB-A Dock. Designed for broad compatibility, it works seamlessly with most USB-C and USB-A laptops and tablets across multiple operating systems. Enjoy expanded connectivity, power delivery, and support for dual UHD 4K displays. With features like fast charging, PXE boot, and MAC address pass-through, this dock brings enterprise-level efficiency to any workspace.

Lenovo USB-C and Thunderbolt™ docks are compatible with laptops that support industry-standard USB-C Alt-Mode, Display Link, or Thunderbolt™ protocols via the Type-C™ port. Advanced features such as MAC address pass-through, Wake-on-LAN (WOL), and mirrored power button functionality are supported on most Lenovo ThinkPad laptops. However, these features may not be available on some Lenovo or non-Lenovo system

Universal Compatibility

Seamlessly connect any USB-C or USB-A laptop, including non-Lenovo brands like Dell, HP, and Apple, with the included USB-C to USB-A adapter. Enhance connectivity and performance across all your devices, even in mixed OS environments.





Dual UHD 4K Display Support

Elevate your visual experience with dual UHD 4K monitor support via the dock’s DisplayPort and HDMI ports. Enjoy crisp, high-resolution displays for both work and entertainment, enhancing productivity and clarity.







Rapid Charging and High-Speed Data Transfer

Achieve rapid charging for most ThinkPad laptops and up to 10 Gbps data transfer speeds on three USB 3.2 Gen 2* ports. The Lenovo ThinkPad Hybrid USB-C with USB-A Dock ensures your devices stay powered and your data moves quickly, all while maintaining a sleek, efficient workspace.

*Depending on many factors such as the processing capability of peripheral devices, file attributes, and other factors related to system configuration and operating environments, the actual transfer rate using the various USB connectors on this device will vary and is typically slower than the data rates as defined by the respective USB specifications: – 5 Gbit/s for USB 3.2 Gen 1; 10 Gbit/s for USB 3.2 Gen 2.



Enterprise-grade manageability

Leverage key management features such as network booting, remote wake-up, secure device identification, and automatic firmware updates. Ideal for enterprise environments, the Lenovo ThinkPad Hybrid USB-C with USB-A Dock simplifies IT management and enhances network security.

SKU: 40AF135CN Categories: , , ,
brands

BrandLenovo
ModelLenovo ThinkPad Hybrid USB-C with USB-A Dock
Product TypeDocking Station
ColorBlack
Docking InterfaceUSB-C Cable with USB-C to USB-A Dongle
Data Link ProtocolGigabit Ethernet
Refresh RateDisplayPort: 3840 x 2160 @ 60 Hz; HDMI: 3840 x 2160 @ 60 Hz; Bundle DisplayPort 1 & DisplayPort 2 to the monitor: 5120 x 2880 @ 60 Hz;; “Maximum resolution” refers to what can be supported by the dock. Actual resolution will vary by laptop.
InterfacesVideo Ports: 2x DisplayPort™, 2x HDMI™ / USB Ports: 3x USB-A (Gen 2, 10 Gbps), 1x USB-C (Gen 2, 5V/3A Power), 2x USB 2.0 / Ethernet (RJ45): 1x Gigabit Ethernet / Audio Combo Jack: 1x Audio Combo Jack
Cables Included1 x USB-C Cable with USB-C to USB-A Dongle – External
FeaturesPXE Boot, Wake-on-LAN, MAC Address Pass-Through
Compliant StandardsTUV, VCCI, BSMI, NOM, CB, FCC, SII, KCC, ICES, cULus, Kvalitet, EAC, RCM, LoA
OS RequirementsWindows 10, Windows 7
Designed ForLenovo IdeaPad 3 14ALC6 82KT, Lenovo IdeaPad 3 14ITL05 81X7, Lenovo IdeaPad 3 14ITL6 82H7, Lenovo IdeaPad 3 15ALC6 82KU, Lenovo IdeaPad 3 15ITL05 81X8, Lenovo IdeaPad 3 15ITL6 82H8, Lenovo IdeaPad 3 17ALC6 82KV, Lenovo IdeaPad 3 17ITL6 82H9, Lenovo IdeaPad 5 Pro 14ITL6 82L3, Lenovo IdeaPad 5 Pro 16ACH6 82L5, Lenovo IdeaPad 5 Pro 16IHU6 82L9, Lenovo IdeaPad Creator 5 16ACH6 82L6, Lenovo IdeaPad Flex 5 14ALC05 82HU, Lenovo IdeaPad Flex 5 15ALC05 82HV, Lenovo IdeaPad S540-13ITL 82H1, Lenovo IdeaPad Slim 7 14ARE05 82A5, Lenovo IdeaPad Slim 7 15IIL05 82AD, Lenovo IdeaPad Slim 9 14ITL5 82D2, Lenovo ThinkBook 13s G2 ARE 20WC, Lenovo ThinkBook 13x ITG 20WJ, Lenovo ThinkBook 13s G2 ITL 20V9, Lenovo ThinkBook 14 G2 ITL 20VD, Lenovo ThinkBook 14s G2 ITL 20VA, Lenovo ThinkBook 14s Yoga ITL 20WE, Lenovo ThinkBook 15 G2 ITL 20VE, Lenovo ThinkBook 15 G2 ARE 20VG, Lenovo ThinkBook Plus G2 ITG 20WH, Lenovo ThinkPad E14 Gen 2 20TA, 20TB, Lenovo ThinkPad E14 Gen 3 20Y7, Lenovo ThinkPad E15 Gen 2 20TD, 20TE, Lenovo ThinkPad L13 Gen 2 20VH, 20VJ, Lenovo ThinkPad L13 Yoga Gen 2 20VK, 20VL, Lenovo ThinkPad L14 Gen 2 20X1, 20X2, 20X5, 20X6, Lenovo ThinkPad L15 Gen 2 20X3, 20X4, 20X7, 20X8, Lenovo ThinkPad P1 (4th Gen) 20Y3, Lenovo ThinkPad P14s Gen 1 20Y1, 20Y2, Lenovo ThinkPad P14s Gen 2 21A0, Lenovo ThinkPad P15s Gen 2 20W7, Lenovo ThinkPad T14 Gen 2 20W0, 20W1, 20XK, 20XL, Lenovo ThinkPad T14s Gen 2 20WM, 20WN, Lenovo ThinkPad T15 Gen 2 20W4, 20W5, Lenovo ThinkPad X1 Carbon Gen 9 20XW, 20XX, Lenovo ThinkPad X1 Nano Gen 1 20UN, 20UQ, Lenovo ThinkPad X1 Titanium Yoga Gen 1 20QA, 20QB, Lenovo ThinkPad X1 Yoga Gen 6 20XY, 20Y0, Lenovo ThinkPad X12 Detachable 20UV, 20UW, Lenovo ThinkPad X13 Gen 2 20WK, 20WL, Lenovo ThinkPad X13 Yoga Gen 2 20W8, 20W9, Lenovo V14 G2 ALC 82KC, Lenovo V15 G2 ALC 82KD, Lenovo Yoga Duet 7 13ITL6 82MA, Lenovo Yoga Slim 7 Pro 14ARH5 82LA, Lenovo Yoga Slim 7 Pro 14IHU5 82NC, Lenovo Yoga Slim 7 Pro 14ITL5 82FX
Power ButtonYes
Power DeliveryYes
Power DevicePower Adapter
Input PowerThinkPad 135W AC Adapter (Slim-Tip)
Output Power90 Watt
Min Operating Temperature0°C
Max Operating Temperature35°C
Dimension (W x D x H)210 x 80 x 30 mm
Weight480 g
WarrantyOne Year
