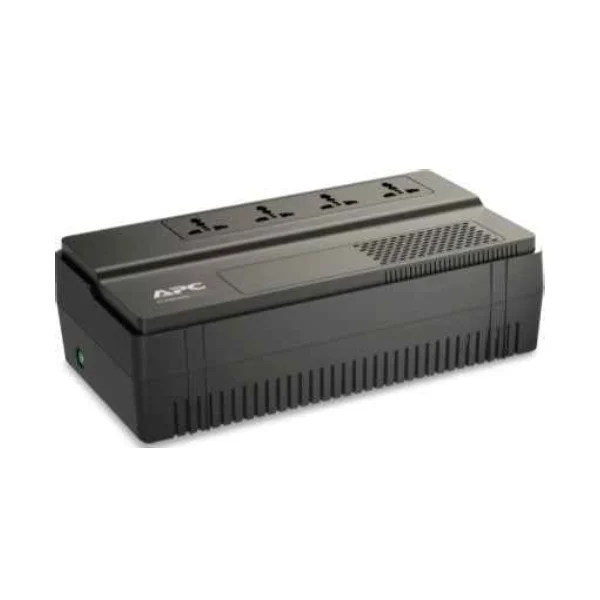

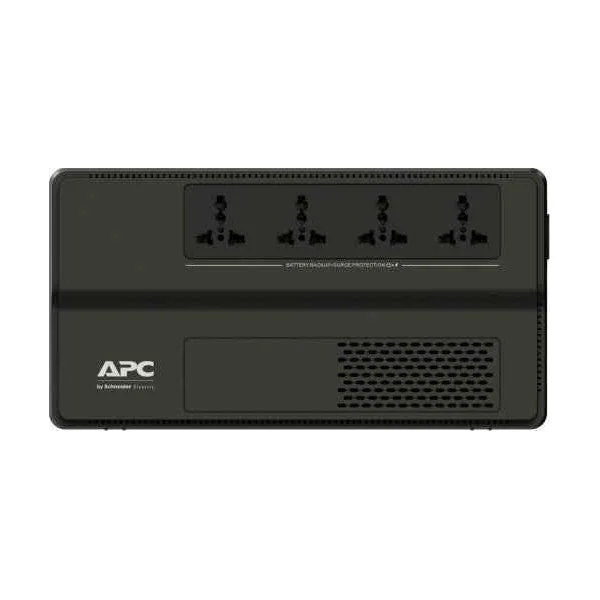

Technical Specifications for APC Easy UPS 1000VA, 230V, Floor/Wall Mount (BV1000I-MSX)
Output
- Max Configurable Power (Watts): 600 Watts / 1.0 kVA
- Output Frequency (sync to mains): 50/60 Hz ± 1 Hz Unsynchronized
- Topology: Line Interactive
- Waveform Type: Stepped Approximation to a Sinewave
- Transfer Time: 6 ms typical; 10 ms maximum
Input
- Input Frequency: 50/60 Hz ± 5 Hz (Auto-sensing)
- Input Voltage Range for Main Operations: 170V – 280V
- Number of Power Cords: 1
Batteries & Runtime
- Battery Type: Lead-acid, maintenance-free
- Typical Recharge Time: 8 hours
- Nominal Battery Voltage: 12V
- Expected Battery Life (years): 3 – 5 years
Efficiency
- Efficiency: View Efficiency Graph
Communications & Management
- Control Panel: LED status display with “On Line” and “On Battery” indicators
- Audible Alarm:
- Alarm when on battery
- Distinctive low battery alarm
- Overload continuous tone alarm
Surge Protection and Filtering
- Surge Energy Rating: 156 Joules
Physical
- Maximum Height: 93 mm (9.25 cm)
- Maximum Width: 161 mm (16.05 cm)
- Maximum Depth: 305 mm (30.5 cm)
- Net Weight: 5.7 kg
- Shipping Weight: 6.0 kg
- Shipping Height: 237 mm (23.7 cm)
- Shipping Width: 143 mm (14.3 cm)
- Shipping Depth: 373 mm (37.3 cm)
- Color: Black
- SCC Codes: 10731304338250
Environmental
- Operating Temperature: 0 – 40 °C
- Operating Relative Humidity: 0 – 90%
- Operating Elevation: 0 – 2032.1 meters
- Storage Temperature: -20 – 50 °C
- Storage Relative Humidity: 0 – 90%
- Storage Elevation: 0 – 15240 meters
- Audible Noise at 1 Meter from Surface of Unit: 40.0 dBA
- Protection Class: IP20
