| Main |
| Run Time for Load | 900 W |
| Min-Max Load | 90–900 W |
| Runtime | 4 min 19 sec |
| Max Capacity Used | 100% |
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V, 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V, 240 V |
| Rated Power | 900 W |
| Rated Power in VA | 1500 VA |
| Product Type | Uninterruptible power supply (UPS) |
| Input Connection Type | IEC 320 C14 |

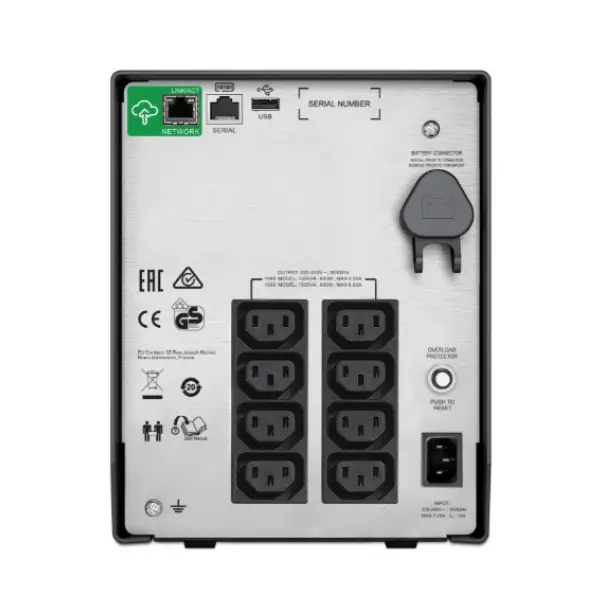

| Output Connection Type | 8 IEC 320 C13, 2 IEC Jumpers |
| Battery Type | Lead-acid battery |
| Provided Equipment | USB cable |
| Range of Product | Smart-UPS |
| Communication Port Type | SmartConnect Ethernet port |
| Software Package | SmartConnect software for remote power monitoring |
| Battery |
| Battery Voltage | 24 V |
| Extended Runtime | 0 |
| Battery Filled Slots | 0 |
| Battery Free Slots | 0 |
| Battery Recharge Time | 3 hours |
| Battery Replacement Qty | 1 |
| Battery Life | 3–5 years |
| Replacement Battery | RBC6 |
| Battery Charger Power | 73 W rated |
| General |
| Number of Power Modules | 0 |
| Power Module Filled Slots | 0 |
| Power Module Free Slots | 0 |
| Product Web Sub-family | Cloud-enabled monitoring |
| Redundant | No |
| Physical |
| Colour | Black |
| Height | 21.9 cm |
| Width | 17.1 cm |
| Depth | 43.9 cm |
| Net Weight | 20.1 kg |
| Mounting Location | Front |
| Mounting Preference | No preference |
| Mounting Mode | Not rack-mountable |
| Two Post Mountable | 0 |
| USB Compatible | Yes |
| Input |
| Input Voltage Limits | 170–300 V adjustable |
| Network Frequency | 50/60 Hz ± 3 Hz auto-sensing |
| Output |
| Harmonic Distortion | Less than 5% at full load |
| Max Configurable Power | 900 W, 1500 VA |
| UPS Type | Line interactive |
| Wave Type | Sine wave |
| Output Frequency | 50/60 Hz ± 3 Hz sync to mains |
| Conformance |
| Product Certifications | C-Tick, CE, GOST, VDE, UK PSTI |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Environmental |
| Acoustic Level | 45 dBA |
| Heat Dissipation | 135 Btu/h |
| Operating Altitude | 0–10,000 ft |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -15–45 °C |
| Storage Altitude | 0–15,240 m |
| Relative Humidity | 0–95% |
| Storage Relative Humidity | 0–95% |
| Communications & Management |
| Control Panel | Multifunction LCD status and control console |
| Free Slots | 0 |
| Communication Port Support | SmartConnect Ethernet port: cloud monitoring feature varies by terms of use |
| Alarm | Alarm on battery, distinctive low battery alarm, configurable delays |
| Surge Protection |
| Surge Energy Rate | 459 J |
| Noise Suppression | Full-time multi-pole noise filtering: 0.3% IEEE surge let-through, zero clamping response time, meets UL 1449 |
