Firewall Throughput: Up to 10 Gbps
Threat Protection Throughput: Around 1 Gbps (with IPS, AV, application control enabled)
Secure SD-WAN: Built-in SD-WAN capabilities for branch connectivity and optimized application experience.
FortiOS Operating System: Unified OS for networking and security management.
Interfaces: Typically includes multiple Gigabit Ethernet ports, plus some models with built-in PoE (80F-POE).
VPN Support: High-performance IPSec and SSL VPN for secure remote access.
Integrated Security: NGFW services such as Intrusion Prevention (IPS), Web Filtering, Anti-Malware, Application Control, and SSL inspection.
Compact Form Factor: Desktop/rack-mountable, fanless (silent operation).
Fortinet Products, Network Products, Network Security

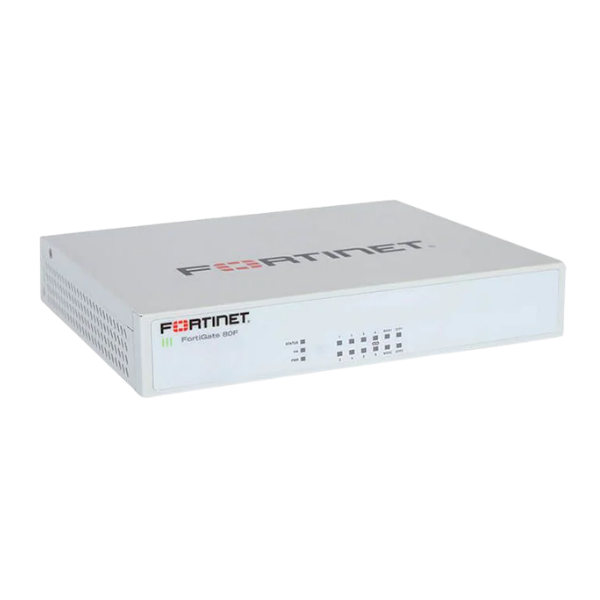

FG-80F, Fortinet FortiGate Firewall, 8xGE RJ45/2xWAN SFP
- Next-generation firewall for SMBs and branch offices
- 10 Gbps firewall throughput
- Integrated SD-WAN for secure connectivity
- Advanced threat protection features (IPS, AV, SSL inspection)
- Compact and cost-effective design
Request Quote / Enquire on WhatsApp Compare
| System Performance — Enterprise Traffic Mix | |||||
| IPS Throughput2 | 1.4 Gbps | ||||
| NGFW Throughput2, 4 | 1 Gbps | ||||
| Threat Protection Throughput2, 5 | 900 Mbps | ||||
| System Performance | |||||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 10/10/7 Gbps | ||||
| Firewall Latency (64 byte UDP packets) | 3.23 μs | ||||
| Firewall Throughput (Packets Per Second) | 10.5 Mpps | ||||
| Concurrent Sessions (TCP) | 1.5 Million | ||||
| New Sessions/Second (TCP) | 45,000 | ||||
| Firewall Policies | 5,000 | ||||
| IPsec VPN Throughput (512 byte)1 | 6.5 Gbps | ||||
| Gateway-to-Gateway IPsec VPN Tunnels | 200 | ||||
| Client-to-Gateway IPsec VPN Tunnels | 2,500 | ||||
| SSL-VPN Throughput | 950 Mbps | ||||
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 | ||||
| SSL Inspection Throughput (IPS, avg. HTTPS)3 | 715 Mbps | ||||
| SSL Inspection CPS (IPS, avg. HTTPS)3 | 700 | ||||
| SSL Inspection Concurrent Session (IPS, avg. HTTPS)3 | 100,000 | ||||
| Application Control Throughput (HTTP 64K)2 | 1.8 Gbps | ||||
| CAPWAP Throughput (HTTP 64K) | 9 Gbps | ||||
| Virtual Domains (Default / Maximum) | 10 / 10 | ||||
| Maximum Number of FortiSwitches Supported | 16 | ||||
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 96 / 48 | ||||
| Maximum Number of FortiTokens | 500 | ||||
| High Availability Configurations | Active-Active, Active-Passive, Clustering | ||||
| Dimensions | |||||
| Height x Width x Length (inches) | 1.6 x 8.5 x 7.0 | 1.6 x 8.5 x 7.0 | 1.6 x 8.5 x 7.0 | 2.4 x 8.5 x 7.0 | 2.4 x 8.5 x 7.0 |
| Weight | 2.4 lbs (1.1 kg) | 2.4 lbs (1.1 kg) | 2.6 lbs (1.2 kg) | 3.1 lbs (1.4 kg) | 3.1 lbs (1.4 kg) |
| Form Factor | Desktop/Wall Mount/Rack Tray | ||||
| Environment | |||||
| Input Rating | 12V DC, 3A (dual redundancy optional) | 12V DC, 3A (dual redundancy optional) | 12V DC, 3A (dual redundancy optional) | +54V DC, 3A (dual redundancy optional) | +54V DC, 3A (dual redundancy optional) |
| Power Required (Redundancy Optional) | Powered by 2 External DC Power Adapters, 100–240V AC, 50/60 Hz | ||||
| Maximum Current | 115VAC/0.4A, 230VAC/0.2A | 115VAC/0.4A, 230VAC/0.2A | 115VAC/0.4A, 230VAC/0.2A | 115VAC/2.2A, 230VAC/1.1A | 115VAC/2.2A, 230VAC/1.1A |
| Heat Dissipation | 52.55 BTU/h | 56.30 BTU/h | 52.55 BTU/h | 402.26 BTU/h | 467.5 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) | ||||
| Storage Temperature | -31–158°F (-35–70°C) | ||||
| Humidity | 10–90% non-condensing | ||||
| Operating Altitude | Up to 16,404 ft (5,000 m) | ||||
| Compliance | |||||
| Safety | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB | ||||
| Certifications | |||||
| ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN | |||||
Based on 0 reviews
Be the first to review “FG-80F, Fortinet FortiGate Firewall, 8xGE RJ45/2xWAN SFP”
You must be logged in to post a review.
You may also like…
- Network Security, Fortinet Products

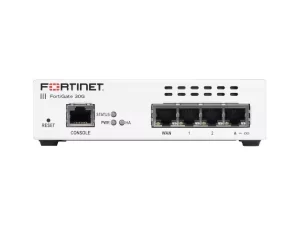

Fortinet FortiGate FG-30G Next-Generation Firewall
- Compact next-generation firewall for SMBs and branch offices
- Firewall throughput up to 4 Gbps
- Secure SD-WAN support built-in
- 1x GE WAN + 4x GE LAN ports (desktop form factor)
- Integrated Antivirus, IPS, Application Control, Web Filtering
SKU: n/a - Network Products, Fortinet Products, Network Security

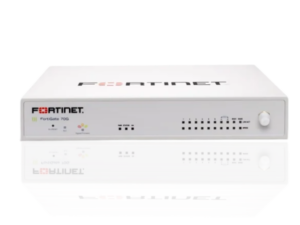

Fortinet FortiGate FG-70G Next-Generation Firewall
Network Products, Fortinet Products, Network SecurityFortinet FortiGate FG-70G Next-Generation Firewall
- High-performance Next-Generation Firewall (NGFW)
- Firewall throughput up to 10 Gbps
- Intrusion Prevention System (IPS) throughput up to 2.5 Gbps
- Threat protection throughput up to 1.3 Gbps
- Supports up to 1.4 million concurrent sessions
- 6x 1GbE RJ45 ports, 2x WAN ports, 2x Forti Link ports
SKU: n/a - Fortinet Products, Network Products, Network Security

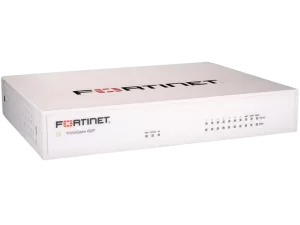

FortiGate 60F Next-Generation Firewall
